Products > Microscopes > Biological
203M Student Microscope
Included fork and mirror not shown in picture
Specifications
– total magnification: 40x – 400x (with WF10x eyepiece)
– eyepiece: WF10x
– objectives: 4x, 10x, 40xR
– focus system: coarse & fine focusing mechanism
– condenser: N.A. 0.65 condenser & iris diaphragm
– fork & mirror
– microscope dimensions: 211 ( L ) x 113 ( W ) x 362 ( H ) mm*
– stage dimensions: 124 ( L ) x 114 ( W ) mm*
* measurements are approximate
Price: HK$850 /set

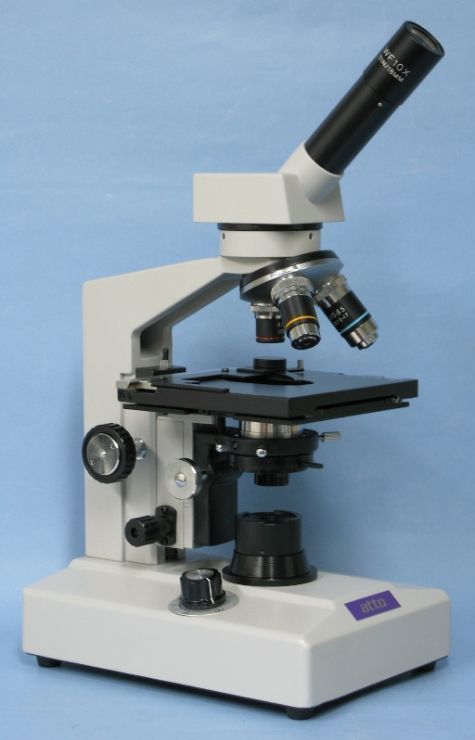

741 Monocular Microscope
The 741 microscope series is applicable for medical workers, chemical analysing companies, laboratories and colleges for research work in the fields of biology and bacteriology. It is also used in clinical tests and teaching.
Specifications
– total magnification: 40x – 400x (with WF10x eyepiece)
– eyepiece: WF10x
– objectives: 4x, 10x, 40xR
– focus system: coarse & fine focusing mechanism
– stage: mechanical with travel range of 60mm x 30mm in X & Y direction
– condenser: N.A. 0.65 condenser & iris diaphragm
– illumination: 741V (variable quartz halogen illumination, 6V 20W), 741LED (variable LED illumination)
– microscope dimensions: 230 ( L ) x 150 ( W ) x 350 ( H ) mm
– stage dimensions: 110 x 115 mm
Price: 741V – HK$1,950 /set
900ES Series Compound Microscope

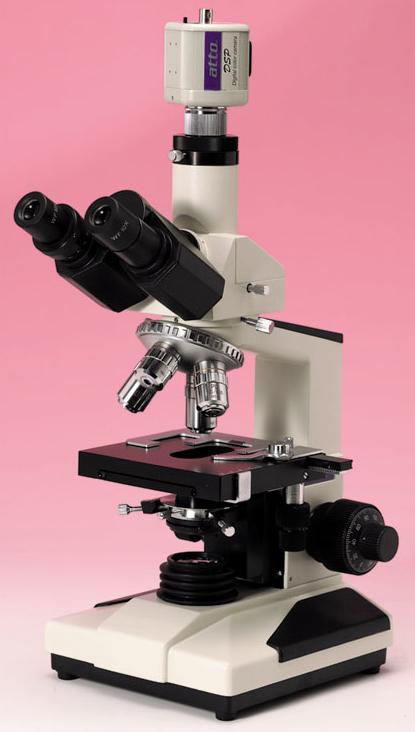

950ES trinocular model shown. Camera to be purchased separately
The 900ES series of biological microscopes is equipped with achromatic objectives and wide field eyepieces, creating a clear image and wide field of view. These microscopes can be used for biology, medicine, and agriculture and industry. They are the ideal instruments in medical treatments, teaching demonstrations and scientific research.
Specifications
– total magnification: 40x – 1000x (with WF10x eyepiece)
– eyepiece: WF10x
– objectives: 4x, 10x, 40xR, 100xR (oil)
– focus system: coaxial coarse & fine focusing mechanism
– stage: double layer mechanical, travel range of 75mm x 35mm
– condenser: N.A. 1.25, rack & pinion adjustment, adjustable iris diaphragm
– illumination: 6V 20W halogen with brightness control
– microscope dimensions: 223 ( L ) x 181 ( W ) x 410 ( H ) mm
– stage dimensions: 135 x 125 mm
Price: 920ES (binocular) – HK$3,860 /set
950ES (trinocular) – HK$4,800 /set
L3000 Biological Microscope

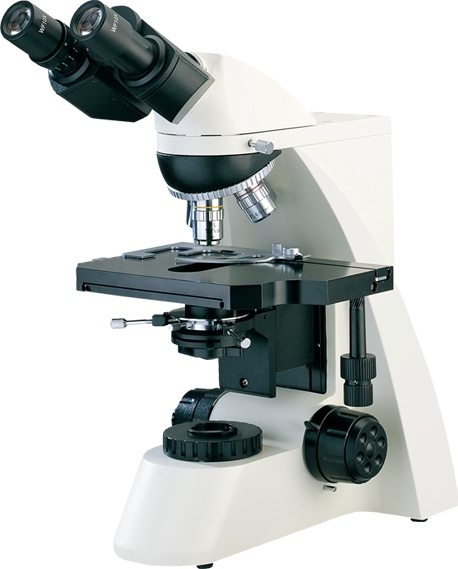

L3000 binocular model shown
The L3000 series biological microscope is equipped with plan achromatic objectives and wide field eyepieces, providing a clear image and wide field of view. It is convenient to operate and can be used in biology, medicine, agriculture and a wide number of industries. It is the ideal instrument for medical treatments, teaching demonstrations and scientific research.
The L3000T model is trinocular so it is possible to attach cameras to the microscope to view or capture images.
Specifications
– total magnification: 40x – 1000x (with WF10x eyepieces)
– eyepieces: WF10x
– objectives: 4x, 10x, 40xR, 100xR (oil)
– focus system: coaxial coarse & fine focusing mechanism
– stage: double layer mechanical, travel range of 75mm x 50mm
– condenser: N.A. 1.25, rack & pinion mechanism
– illumination: 6V 20W halogen with brightness control
– microscope dimensions: 280 ( L ) x 210 ( W ) x 412 ( H ) mm
– stage dimensions: 210 x 140 mm
Price: L3000T (trinocular) – HK$7,200 /set

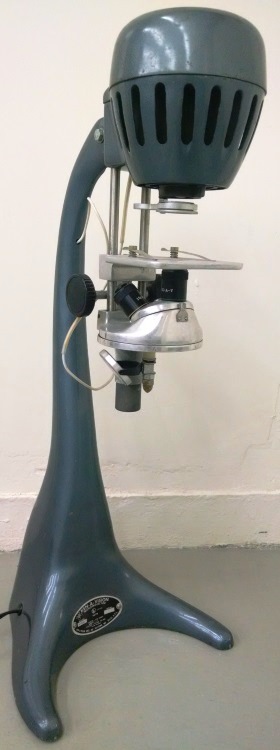

Ken-A-Vision X1000-1 Micro-Projector
Demonstration unit shown
The Ken-a-vision X1000-1 is ideal for education purposes. It is also used for teaching visually impaired and physically challenged individuals.
The microprojector projects images of microscopic samples onto a wall or table for group viewing. Projecting images on a screen from 10′ away will provide approximately 400x magnification with its 43x objective lens. The 10x eyepiece can also be used to view slides like a traditional microscope.
The X1000-1 is the most complete micro-projector model from Ken-a-vision with a polarizing lens, 5x auxiliary lens, rack and pinion, turret disk, three objective lenses (10x, 20x, 43x) and 10x eyepiece tube.
Specifications
– eyepiece: 10x
– auxiliary lens: 5x
– objectives: 10x (16mm), 20x (10mm), 43x (6.5mm)
– focusing system: rack & pinion mechanism
– stage: aluminum with two spring-loaded clips
– lamp: 150W quartz iodine
– double condensing system
– BS plug
– micro-projector dimensions: 280 ( L ) x 260 ( W ) x 670 ( H ) mm*
– stage dimensions: 140 x 105 mm
* measurements are approximate
Price: HK$1,250 /set (sale price for demonstration unit)
